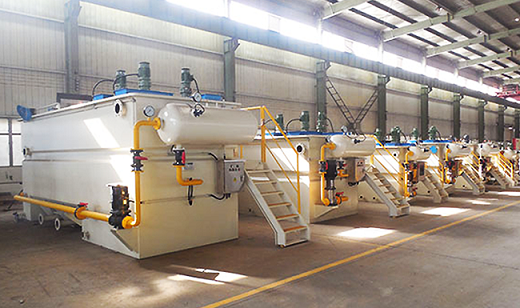

PRODUCT INTRODUCTION:
Dissolved Air Flotation(DAF) system is a kind of commonly used solid-liquid separation equipment in the sewage treatment industry, which can effectively remove the suspended matter, grease, rubber substances in the sewage, and is the main equipment of the sewage preliminary treatment.
PRODUCT APPLICATIONS:
DAFs are widely used for treating industrial wastewater, no matter from oil refineries, chemical plants and paper mills or food & beverage industries.
VIDEO:

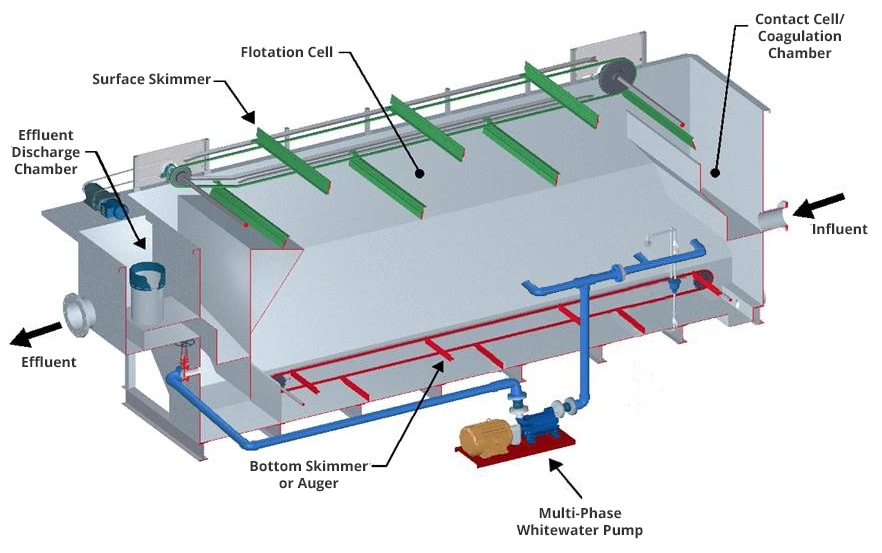

How DAF Works
DAF operates by dissolving air into water under high pressure, creating a supersaturated solution. When this solution is released into a flotation tank at atmospheric pressure, millions of tiny bubbles (20–50 microns) form. These bubbles adhere to suspended particles, reducing their density and causing them to float to the surface, where they are skimmed off as sludge. The clarified water is then discharged or reused, while the sludge undergoes further treatment.
PRODUCT ADVANTAGES:
DAF system is widely used in industrial wastewater reuse, pretreatment system before membrane treatment, reclaimed water reuse, MBBR biological film process
1.The bubble size is less than 10um, Dissolved gas efficiency is over 95%
2.Land-occupying province,the solid suspended matter content in effluent can be less than 20 mg/L
3.One-button boot, unattended, Cloud digital service can be realized

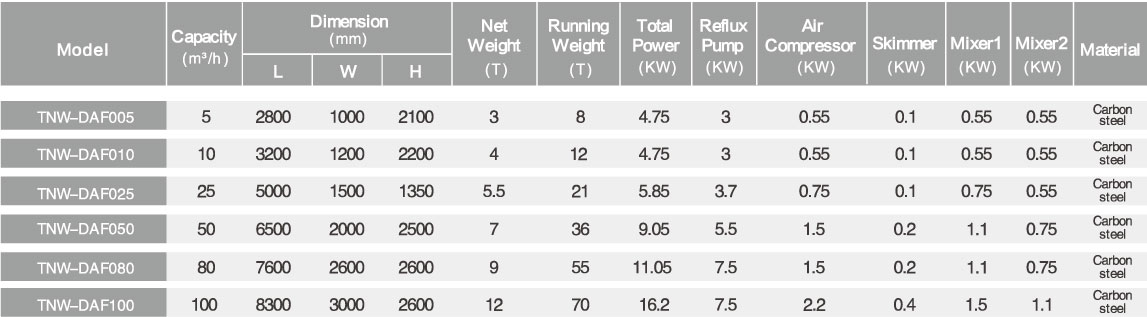

| Model | Capacity (m³/h) | L(mm) | W(mm) | H(mm) | Net Weight (T) | Running Weight (T) | Total Power (Kw) | Reflux Pump (Kw) | Air Compressor (KW) | Skimmer (KW) | Mixer1 (KW) | Mixer2 (KW) | Material |
| TNW-DAF005 | 5 | 2800 | 1000 | 2100 | 3 | 8 | 4.75 | 3 | 0.55 | 0.1 | 0.55 | 0.55 | Carbon steel |
| TNW-DAF010 | 10 | 3200 | 1200 | 2200 | 4 | 12 | 4.75 | 3 | 0.55 | 0.1 | 0.55 | 0.55 | Carbon steel |
| TNW-DAF025 | 25 | 5000 | 1500 | 1350 | 5.5 | 21 | 5.85 | 3.7 | 0.75 | 0.1 | 0.75 | 0.75 | Carbon steel |
| TNW-DAF050 | 50 | 6500 | 2000 | 2500 | 7 | 36 | 9.05 | 5.5 | 1.5 | 0.2 | 1.1 | 1.1 | Carbon steel |
| TNW-DAF080 | 80 | 7600 | 2600 | 2600 | 9 | 55 | 11.05 | 7.5 | 1.5 | 0.2 | 1.1 | 0.75 | Carbon steel |
| TNW-DAF100 | 100 | 8300 | 3000 | 3000 | 12 | 70 | 16.2 | 7.5 | 2.2 | 0.4 | 1.5 | 1.1 | Carbon steel |
